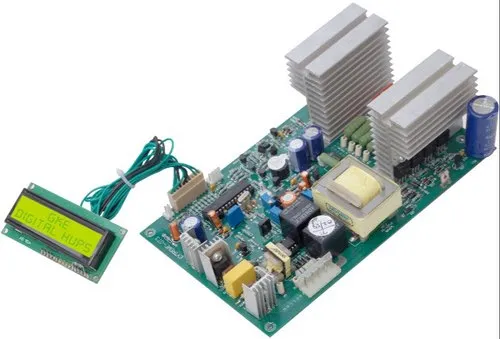

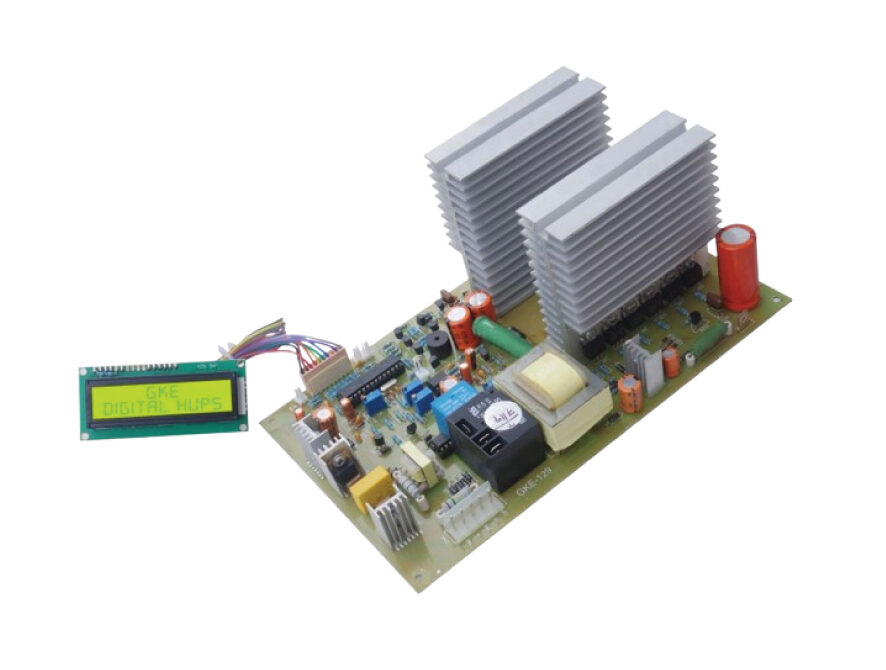

GKE-129 – 1500VA / 24V
Model 129 generally refers to a DIY inverter board / inverter kit (not a finished branded boxed
inverter), commonly used in hobbyist and low-cost home inverter builds.These kits are designed
to convert 12 V DC (from a battery) to 230 V AC (50 Hz) for powering basic appliances.
Description
ABOUT THIS ITEM
1) PWM based Mosfet technology
2) Overload Protection with buzzer
3) CV – CC Charging system
4) Efficiency ( On Inverter mode ) > 85%
5) SCR Charging
6) Low battery shutdown
7) HUPS mode is provided to run computer without interruption
TECHNICAL SPECIFICATIONS
Microcontroller – PIC16F73
Input Voltage DC – 24V
Output Voltage AC – 230V.AC
Technology – PWM
Output Waveform – Quasi Sinewave
Display – LCD
Charging Current – Lo-10A , Hi- 12A
Batt Charging cut off – 27.6V
O/P frequency – 50 HZ
Low battery beep – 21V
Low battery Shutdown – 20.4V
Inv mode HUPS mode – 100-280V , 180-260V
Overload reset – 5 Times
Short circuit protection – Provided Shut down
AC High low Cut – Setting available through preset
Dimension Kit -23cm x 14.5cm
